Bailey Bridge Transom

It is composed by four groups bands, used to limit longitudinal position. It can be divided into overweight and common.

1. To support Bailey decking System
2. Bailey Transom
3 .Made of H400 ;H600,H280, H346,H350 steel according to the loading capacity
4. Galvanize to protect the surface

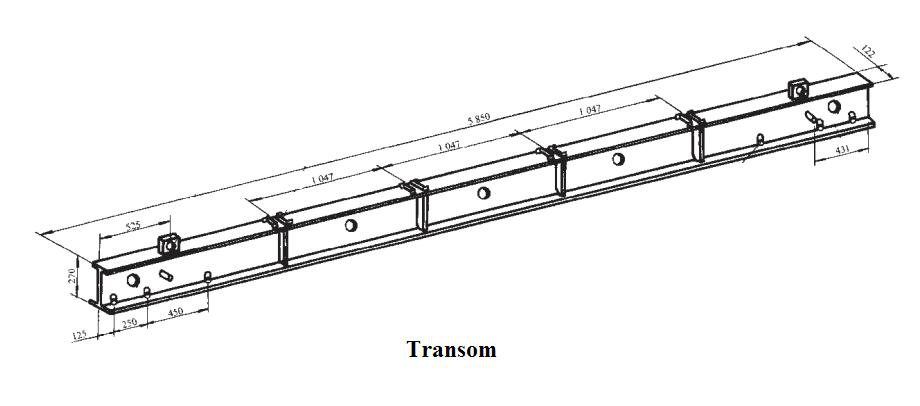

On the transom, there are four groups of clops, for limiting the position of stringer or decks, with short post welded on two ends for connecting raker, and three sockets on the bottom surface of two ends respectively. While installing the transom, put the socket on the bolt onto the transom pad of the lower truss chord member, and position the transom on the truss. The interval of sockets is the same as the truss. After positioning the transom, the interval of truss is relatively fastened.

Advantages

Possessing the features of simple structure,
convenient transport, speedy erection
easy disassembling,
heavy loading capacity,
great stability and long fatigue life
being capable of an alternative span, loading capacity


Features

1. High strength and big stiffness , relative to the concrete bridge can be reduced trabecular high and self-respect
2. Due to the steel isotropic, quality of a material is uniform and modulus of elasticity, that make steel bridge in the working condition and calculation compared with the assumption
3. Steel bridge generally USES factory, site splicing, the construction period is short, processing convenient and not affected by seasonal effect.
4. Steel bridge is suitable for industrialized manufacture and very convenient to transport.
5. Steel bridge is easy to repair and replace,long lifetime,material can be recycled.


Application

Beam bridge,arch bridge,rapid frame bridge,cable-stayed bridge,suspension bridge. passenger foot-bridge,bailey type supports and piers.


Mixture form to erect all kinds of

Temporary Bridges, Emergency Bridges and Fixed Bridges.
Using the bridge equipment, the suspension bridges of varied span can be erected.
The bridge has the advantages of few components, light weight and low cost.
Bailey Bridge requires no special tools or heavy equipment for construction, the bridge elements
are small enough to be carried in , and the bridge is strong enough to carry . It is considered a great example of military engineering.
