Bailey Bridge End Posts

1,It is erected in the both of bridge, used to move the load to bridge bearing.
2,It can be dedicated into male and female.

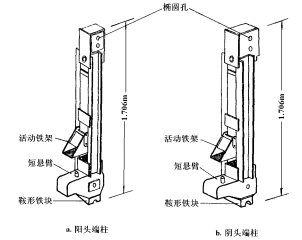

End posts are placed in the two ends of the bridge, used for transmitting the bridge load to the bridge brace. End post comprises male and female. While installing, they are installed to the end respectively. The two holes on the side of the end post shall connect the upper and lower chord member of the truss frame, and the upper oval hole connects the second-floor truss; there are short cantilever and kinetic hasp with locating pin on the under-part of end post for setting and fixing transom. During long distance transport, move the kinetic hasp to the post inside and fasten with bolt. Saddle-shaped pad is welded to the post bottom for its locating on the axial girder.

Bailey Bridge From China ;Great Wall Profile.pdf

ZhengJiang Great Wall Heavy Industry Technology Co.ltd (here and after called Great Wall ) is locacted at Zhengjiang city, South of Yangtze River, belonging to Yangtze River Delta economic zone, owning railway station of Shanghai-Nanjing and Shanghai-Beijing High-speed raillways; 30 kilometers away from Zhenjiang seaport, 50 kilometers away from Changzhou airport, 70 kilometers away from Nanjing airport,and YangzhouTaizhou airport; Great Wall has passed ISO Quality Management System Certificate; its WPS and welders have passed BV certification; the raw material and finished products are accepted by International Third Testing Institute such as SGS,CCIC,CNAS etc; In addition,Great Wall has several independent R & D patents

321-Type（British Compact-100） prefabricated highway steel bridge and 200-Type prefabricated highway steel bridge ( Bailey bridge) are main products of Great Wall, which has a full set of components production line for complete bailey bridge set. More than this, Great Wall has developed a kind of large span prefabricated D-Type bridge whose single span can be up to 91 meters, and has completed the load test already and engineering application of the whole bridge.

Great Wall has the surface treatment process of sand blasting, dip coating, spray painting, hot dip galvanizing, zinc aluminum alloy coating,etc with the annual output of more than 10000 tons.

Great Wall has good cooperation relationships with China Communication Group, China Railway Group, Powerchina Corporation, GEZHOUBA Group, CNOOC etc huge state-owned Key Enterprises in railway, road, international government procurement projects, and is also enthusiastic about the public welfare, such like supporting Hongkong Wu Zhi Qiao (Bridge to China) Charitable Foundation, building up all the footbridges for them and supporting China Shanxi TV building Charity Bridge for remote village.

Great Wall steel bridge is not only well- known in China, but also won good reputation overseas; the bridges made by Great Wall have been used all over the world exported to Indonesia, Nepal, Republic of the Congo, Myanmar, Mongolia, Kyrgyzstan, Mexico, Chad, USA, Trinidad and Tobago, Mozambique, Tanzania，Kenya, Ecuador , Dominica etc.

Furthermore, Great Wall has developed the container movement set independently, undertakes heavy steel structure fabricating business, promotes mechanical galvanization process for fastening parts.

The container movement set is not only supplied to domestic airplane manufacturing company, but also exported to country Haiti and so on meeting the demands of moving container in airport dock. The box girder, plate girder, guard rail such steel structures made by Great Wall are also well approved by clients. Great Wall mechanical galvanizing process made up the deficit of electroplating and hot galvanizing, showed extraordinary performance in field of environmental galvanization.

Great Wall considers the quality as company’s life, always accumulates the industrial experience of production and quality, improves production technology and efficiency, follows international specifications to control the quality, improves international competition, supplies the superior products and the best service to the clients with high standard, good quality and branding strategy.

We will be your smartest choice.
